HP DC-5100 Images and Commentary


Some images are featured on this page of my HP DC-5100 SFF series computer, and its configuration. Please be patient, as these images are being sent through a "Tin Can and String" DSL connection, my upload speeds are only around 0.5mbps, 30KB/sec at best
Please excuse dust and dirt in the system. Photographs were taken during the cleaning process. This sytem typically operates a 24/7 schedule, and doesn't have much downtime (aside from blackouts).

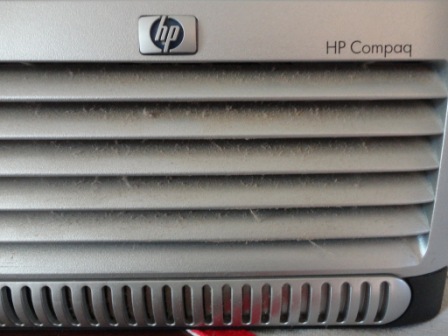

Front-Right of the front panel

Front-Left of the front panel on this system

Rear Panel

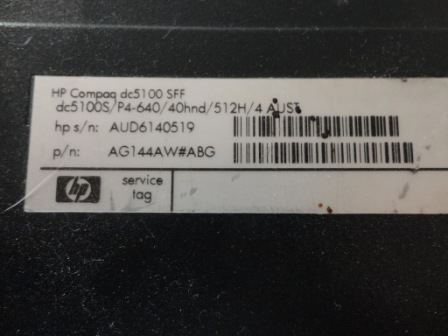

System's Data Tag
Service Tag and system information

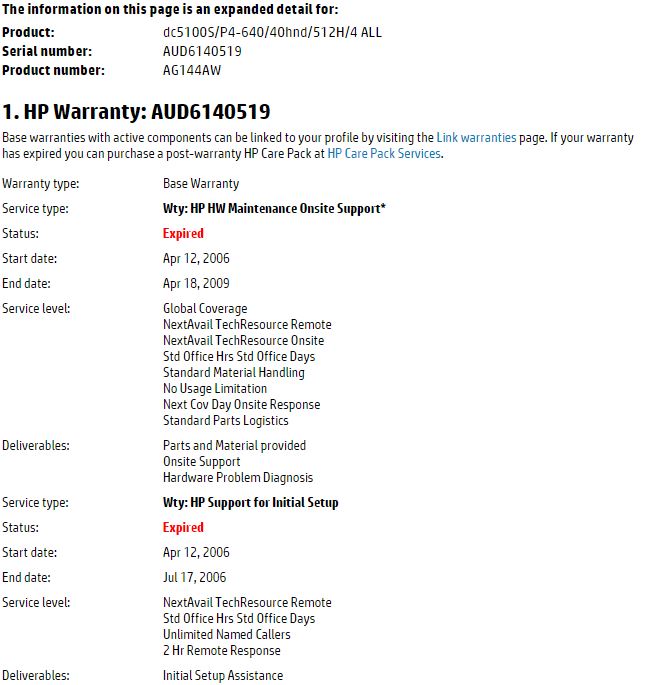

Warranty Details
This system was clearly in-use by a large corporate entity - these warranty details are very impressive!

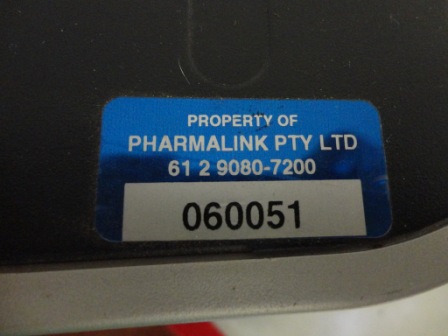

The system's asset-tag hinting at its previous working life - Office work?

Cooling Area closeup

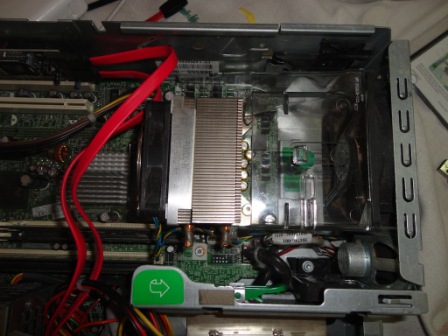

The CPU air-duct. Notice the small spur-run over to what appears as "behind" the processor in this image.

System Inside
The system itself, inside. Notice the green, arrowed pieces indicating the pieces can be pivoted tool-lessly (drive caddy, PSU, PCI slot retainers etc).

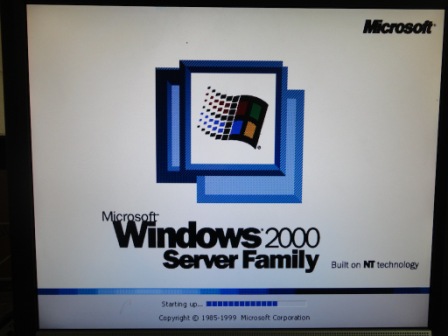

From a time when Server 2000 ran on this system...
